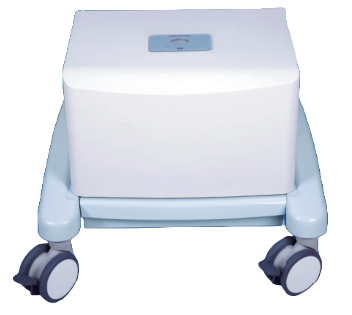

C30 Medical Air Compressor

Description

C30 Medical Air Compressor by SIRUSMED.

Features:
– Can be used either together with ventilator or independently
– Important monitoring & protection system to ensure safe operation
– High-efficiency cooling and vapor removing system
– Double cooling and vapor removing system
– Low noise operation
– Easy maintenance

Physical & Environmental Parameters:
– Temperature: -20~+70°C (Storage), +5~+40°C (Operation)
– Relative Humidity: 0~99% (Storage), 10~95% (Operation) – No condensation
– Atmosphere: 500~106kPa (Storage), 50~106kPa (Operation)

Electric Parameters:
– Power Supply:
115±10% VAC, 60Hz (American Standard)
220~240VAC, 50Hz / 230VAC, 60Hz (European Standard)
220~240VAC, 50Hz (Chinese Standard)
– Power Consumption: <350VA Pneumatic Parameters: - Output Pressure: 400kPa - Output Peak Flow: >180L/min (0.6s) under 350kPa / 51PSI
– Output Flow: 45L/min under 350kPa / 51PSI
– Output Dew Point: 3°C lower than ambient temperature (≤40°C, working pressure 350kPa)

Other Specifications:
– Noise Level: <50dB (measured 1.5m distance, 1.5m height) - Filtration: 5μm - Pressure Gauge Range: 0~1MPa or 0~150Psi - Monitoring & Alarm: Audible and visual alarm when airway pressure <250kPa (after 5s), stops when pressure reaches 280kPa (after 5s) Weight: 45 kg Dimensions: - Complete Machine: 650 x 550 x 923 mm - Main Body: 650 x 550 x 452 mm
