Description

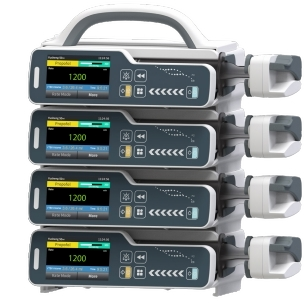

SA15 Syringe Pump by Respcare.
Advanced Drug Library:
Built-in drug library with DERS and optional multi-drug import — reduces dosing errors and saves setup time.
Flexible Infusion Modes:
Supports Rate, Weight, Dose Time, Time, Initial Dose, Micro-dose, Intermittent Infusion, Gradient.
Optional: Sequence, TIVA.
Infusion Safety Suite:
Includes KVO, anti-bolus, and automatic pressure release for safe and continuous drug delivery.
Versatile Connectivity:
Supports data upgrade & export, wireless cascading without control stations, future integration with HIS/CIS systems, nurse call, and central/pump station platforms.
Specifications
| Operation & Display | |
| Display | 3.5” color touchscreen with brightness control, night mode and auto lock |
| Hard Keys | Alarm Mute, Bolus, Start/Stop, Main Menu, Power On/Off |
| Patient Info Setup | Supported |
| Infusion Performance | |
| Pusher Type | Manual |
| Infusion Modes |
Rate, Weight, Dose Time, Time, Initial dose, Micro-dose, Intermittent infusion, Gradient Optional: Sequence, TIVA |
| Syringe Sizes |
1 mL (optional), 2 mL, 3 mL, 5 mL, 10 mL, 20 mL, 30 mL, 50/60 mL Automatic detection of syringe size |
| Syringe Brands | Preloaded common brands; custom brands can be added |
| Flow Rate Range |
1 mL: 0.01–50 mL/h 2/3 mL: 0.01–150 mL/h 5 mL: 0.01–300 mL/h 10 mL: 0.01–800 mL/h 20 mL: 0.01–1200 mL/h 30 mL: 0.01–1500 mL/h 50/60 mL: 0.01–2300 mL/h |
| Accuracy |
Flow rate: ≤ ±1.8% or ±0.005 mL/h (whichever greater) Bolus dose: ≤ ±2% or ±0.05 mL |
| Purge/Bolus Volume | 0.1 to full syringe capacity (1–50 mL) |
| Preset Volume | 0.01 – 9999.99 mL |
| KVO Rate | 0.1 – 5.0 mL/h |
| Occlusion Pressure | 75–1050 mmHg, adjustable in 14 levels |
| Max Pump Pressure | ≤ 200 kPa |
| Safety & Protection | |
| Drug Library | Basic version with DERS (Optional: Multi-drug import) |
| Safety | Anti-bolus, Automatic pressure release, KVO |
| Alarm Messages |
Power-related: Low battery, Battery empty, No battery, No power adaptor Syringe-related: Syringe detached, Near empty, Empty, No syringe, Incompatible syringe Infusion process: VTBI near end, Infusion complete, Occlusion, Reminder, KVO running, KVO complete System/Connectivity: System error, Network disconnected, Connection failed |
| History Records | Up to 5,000 entries |
| IP Rating | IP44 |
| Connectivity & Power | |
| Connectivity | USB port, Infrared module (Optional: WiFi module, Multifunctional interface) |
| Cascade Capacity | Supports cascading of 2–15 pumps |
| Power Supply |
AC 100–240 V, 50/60 Hz Adaptor Output: DC 9 V / 3 A |
| Battery |
Lithium-ion, DC 7.2 V, 2600 mAh Runtime ≥ 5 hours @ 5 mL/h |
| Weight | ≤ 1.6 kg (with battery) |
| Dimensions | 270 × 155 × 76 mm |
